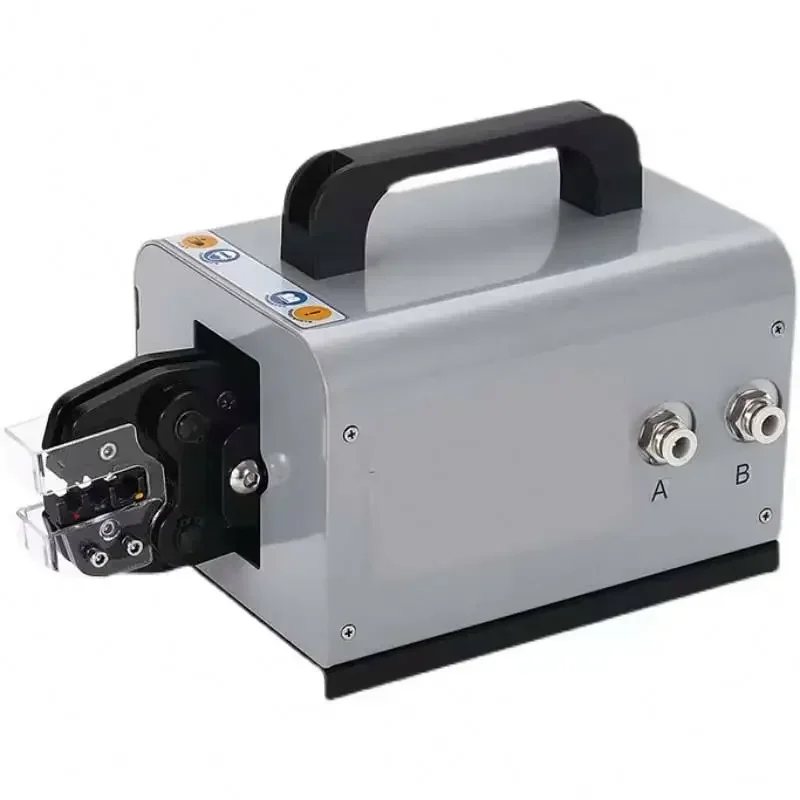

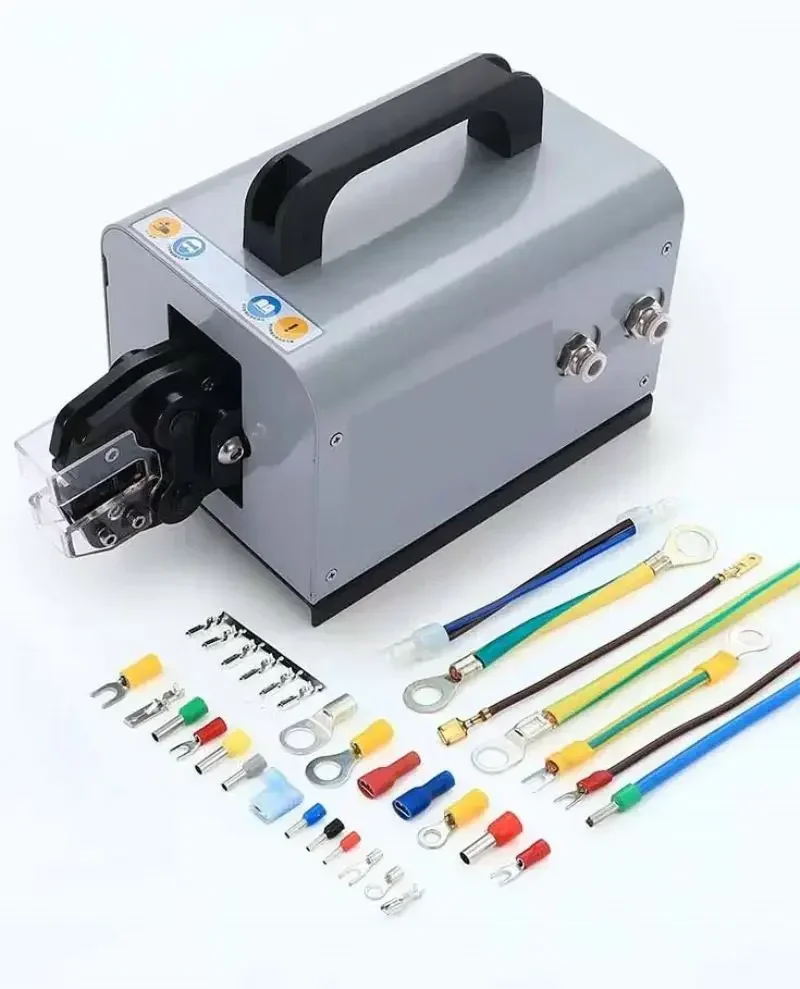

Pneumatic Type Terminal Crimping Machine
Core Features: Interchangeable crimping dies for various terminal types; Operated by foot switch, suitable for medium-batch crimping; More reliable, stable and efficient than manual tools; Compact and lightweight.
|
Parameter Item |
Details |
|
Air pressure range |
0.5-0.8MPa |
|
Output |
2.5T |
|
Overall dimension |
270×140×170mm |
|
Weight |
9.5Kg |
|
Terminal Type |
Crimping Range |
|
Ferrules |
0.25-35mm² |
|
Twin ferrules |
2×0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0mm² |
|
Insulated O/Y type terminals |
0.25, 0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm² |
|
Non-insulated O/Y type terminals |
0.5, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0, 10.0, 16.0mm² |
|
Males/females receptacles |
0.5, 1.0, 2.0, 2.5, 4.0, 6.0mm² |
|
Contact pins for rectangular connectors |
0.5, 1.0, 2.0, 4.0mm² |
Note: Interchangeable crimping dies are available for selection; Mold replacement steps: Remove protective cover → Take out old mold → Install new mold → Tighten screws.
