Specification of vertical plastic Injection molding machine:
| MODEL | JY-450ST | ||
| Screw Diameter | 30mm | 32mm | 35mm |
| Safe Shot Weight(PS) | 2.6OZ | 3.0OZ | 3.75OZ |
| Opening Stroke | 200mm | ||
| Clamping Force(T) | 45Tons | ||
| Platen Size | 580×430mm | ||
| Distance Between Tie Bere | 410×250mm | ||
| Min Mold Height(KW/HP) | 220/70mm | ||
| Pum Motor Power | 5.5/7.5/HP | ||
| Machine Dimensions(LxWxH) | 1.7×1.2×3.0m | ||
| Number of Temperature Control | 3PCS | ||
| Pump Output | 37.2L/min | ||
| Oil Reservoir Capacity | 130Liter | ||
| Barrel Heating Power | 2.8KW | ||
| Cooling Water Consumption | 600-800L/hr | ||
| Total Power | 9KW | ||
| Machine Weight | 1.8Tons | ||
| Shipping Weight | 1.9Tons | ||

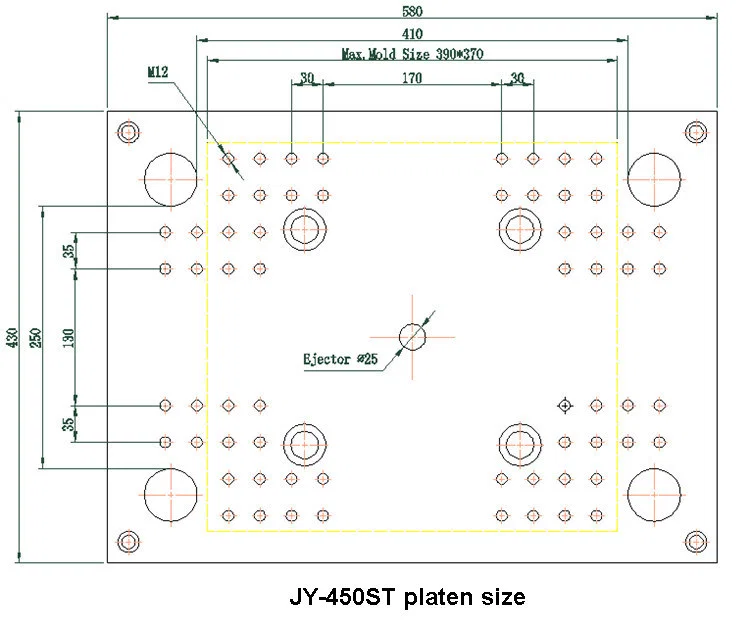

Mold Platen Details:
功能
1) 直螺杆射出装置。
2) 二（三）段温度、射出速度、背压、螺杆转速，适合各种塑料成型。
3) 下模固定上模活动方式，镶入件定位精准，成品取出免附设。
4) 低压合模装置，可保护模具安全。
5) 料管可升降，残料清理方便，模具安装容易。
6) 可装置单模或双滑台。
机器应用

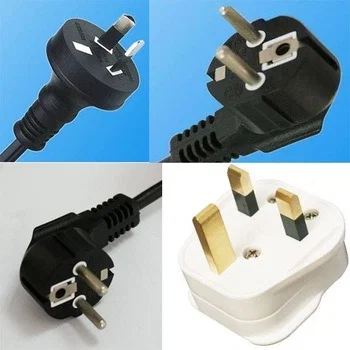

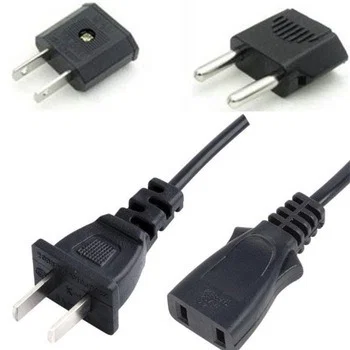

立式注塑机具有低噪音、低能耗、高效率、长寿命的优点，广泛应用于生产各种接线端子、家用电器、消费电子产品、电动工具、汽车仪表盘、医疗器械、敞口容器、连接器、电缆、汽车零部件、插头等。
