IPEX同轴电缆压接机高效稳定型号WPM-IPEX

Name: IPEX同轴电缆压接机 高效稳定 型号WPM-IPEX
Brand: 竞为科技
SKU: WPM-IPEX
Availability: InStock
Rating: 5 (1 reviews)

产品型号: WPM-IPEX
规格参数
型号: WPM-IPEX
适用电缆外径范围: 1.13mm、1.32mm、1.37mm、1.78mm、0.81mm
生产效率: 2200pcs/h
压力: 0.5~0.7Mpa (5~7bar)
电源要求: AC220~240V, 50~60HZ; 300VA
噪音:
尺寸: 350mmx260mmx200mm
重量: 4kg
立即询价

IPEX Terminal Crimping Machine
Production description
1. The machine model specialized for coaxial cable crimping molding style, generous,energy-saving, and stable. design, connecting coaxial cable, and the appearance design is beautiful
2. Use for series special terminal, Cutting, Moulding, and Crimping complete together.
3. The machine adopts Japan SMC pneumatic components, more reliable, and sturdy.
4. The machine's electrical unit adopts modular parts, saving more and more energy&stable.

Application range
This machine is used for a special machine of I-PEX series precision connector terminal Moulding&Crimping. Furthermore, be suitable for molding the other associated connector terminal.

Function
The machine is according to different terminals corresponding to the coaxial cable outer diameters models, such as 1.13mm,1.32mm,1.37mm,1.78mm, and 0.81mm each. At the same time, the machine is compact and portable, the PLC control operation is simple, and can be converted to manual/automatic.

Technical Specifications

Applicable coaxial cable outer diameter range 1.13mm、 1.32mm、1.37mm、1.78mm、0.81mm
Production efficiency 2200pcs/h
Pressure 0.5~0.7Mpa （5~7bar）
Power requirements AC220~240V,50~60HZ;300VA
Noise <70d B (A)
Size 350mmx260mmx200mm

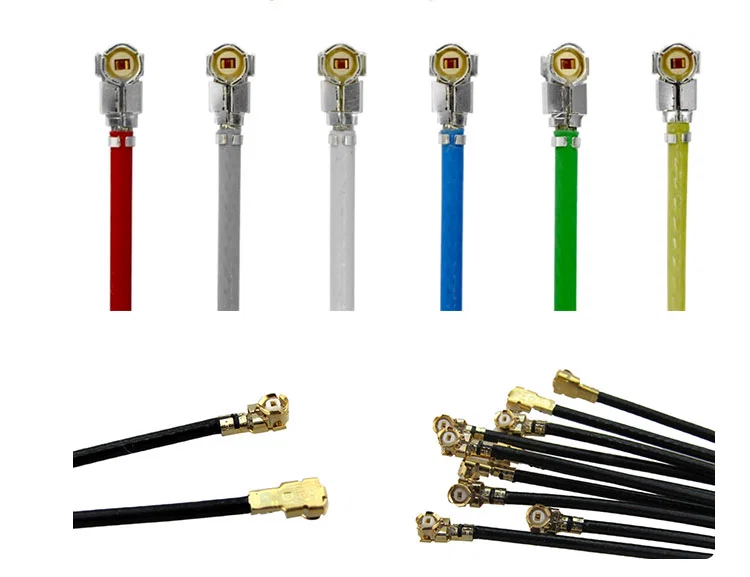

result display of IPEX Coaxial cable crimping machine, rg6 coaxial cable and connector crimping machine
